CHUCK WAGON
The Crossover Gravel
One Bike, Every Terrain
A new year, a new ride. The client wanted a single bike that could handle touring, unpaved roads, and casual city rides. After intense discussions, we settled on a crossover all-around geometry — adapted from the Crux size 52 and merged with the client's personal fitting data.
GR9 Tubing & Smart Weight
The frame is built entirely with GR9 titanium tubing. For the down tube and top tube, we used butted tubing (0.9–0.7mm) to shave weight without sacrificing structural integrity.

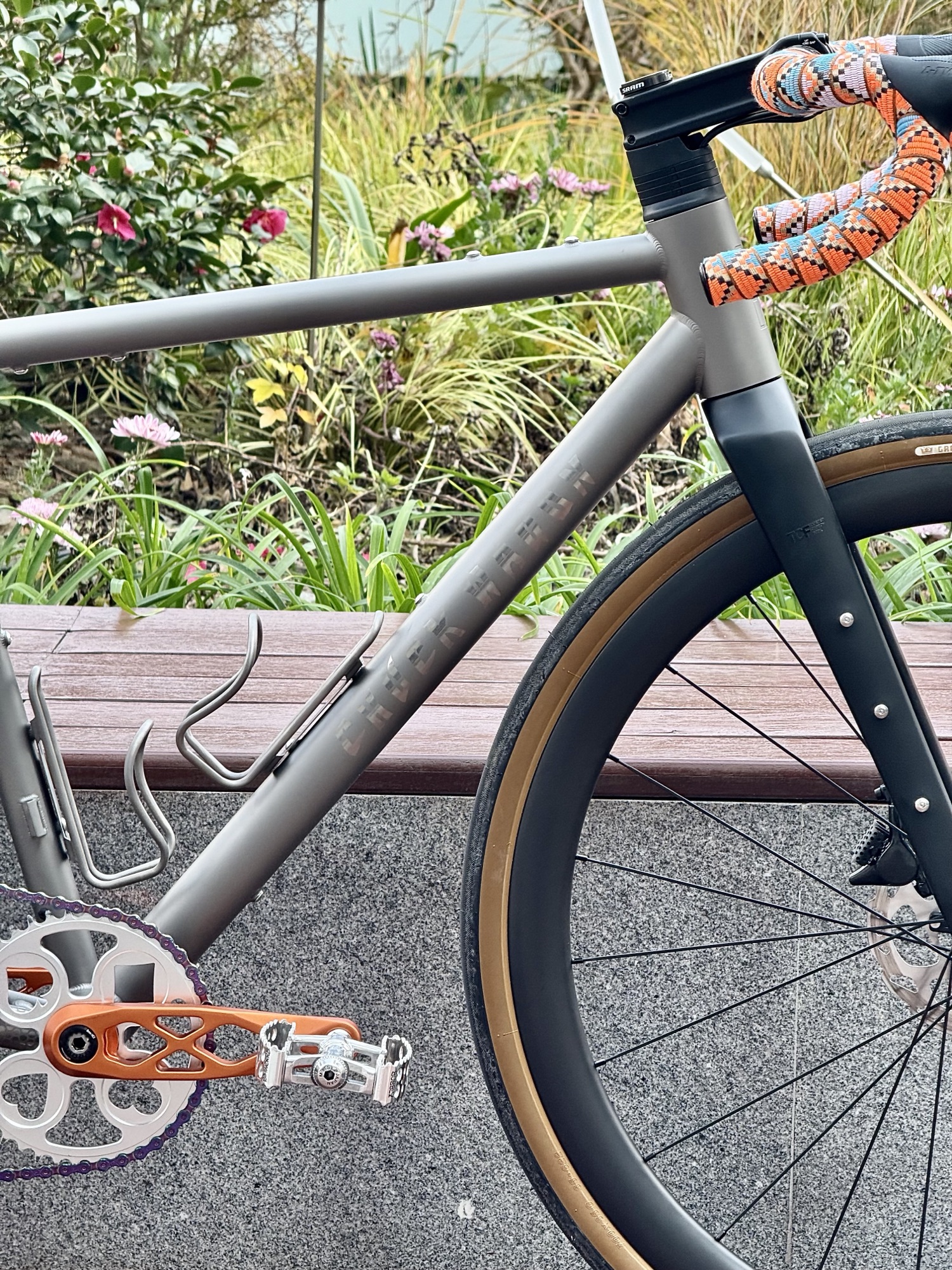

The paint scheme was the client's own concept — polka dots paired with a personal logo. Ample mounting points were included for the multi-scenario rider, including a three-hole bottle cage design on the down tube to accommodate frame bags of various sizes.
Component Selection
DRIVETRAIN

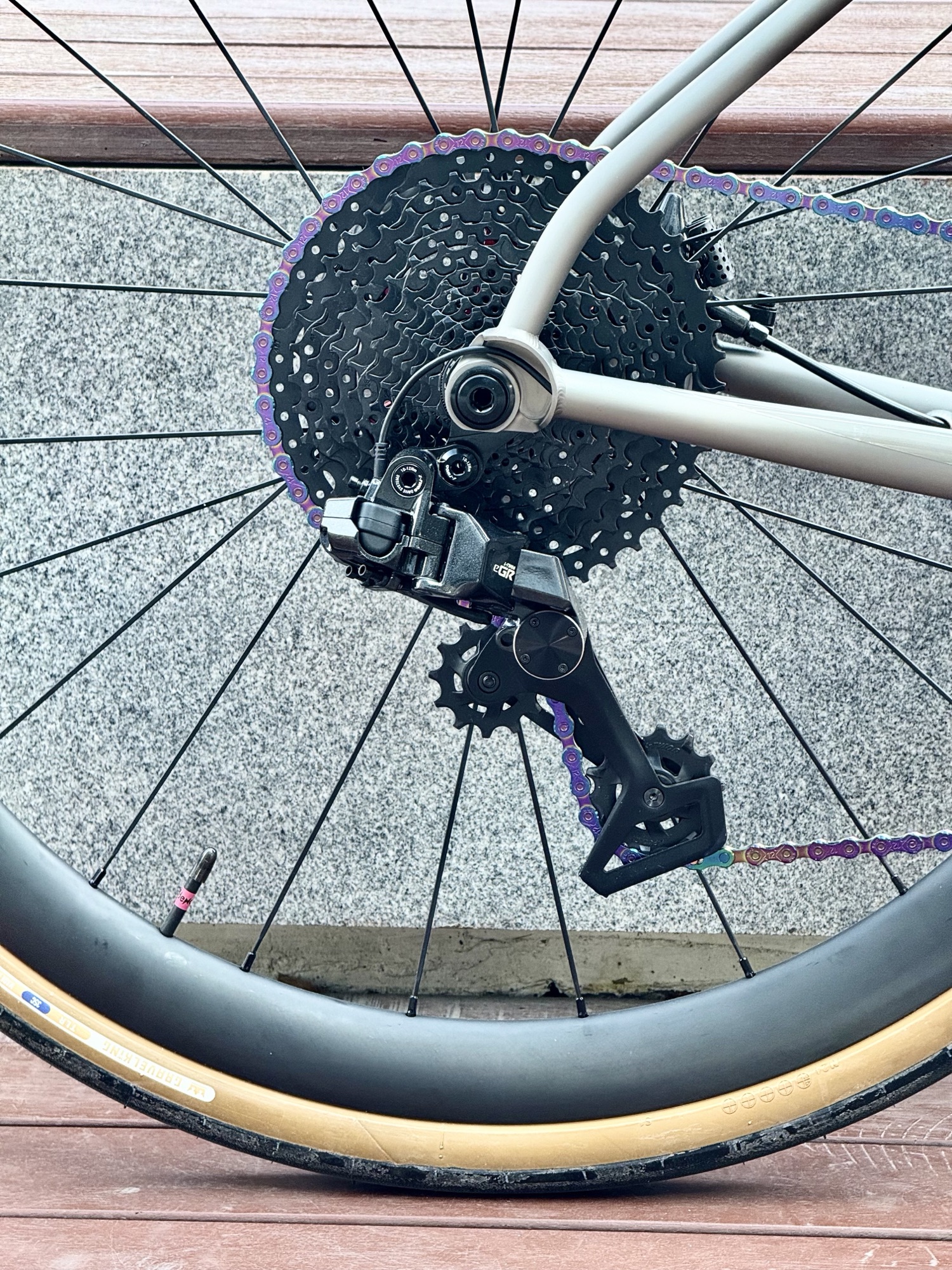

LTWOO eGR 1×12
Blueprint Electronic
WHEELSET
CYNAID (Prototype)
40mm | 24i/30o | 1440g
CRANKSET
CNC Crank (Client)
29mm Axle
HANDLEBAR
PRO DISCOVER
Flare | 520mm Drop
SEATPOST
VFV Suspension
Voicevelo
SADDLE

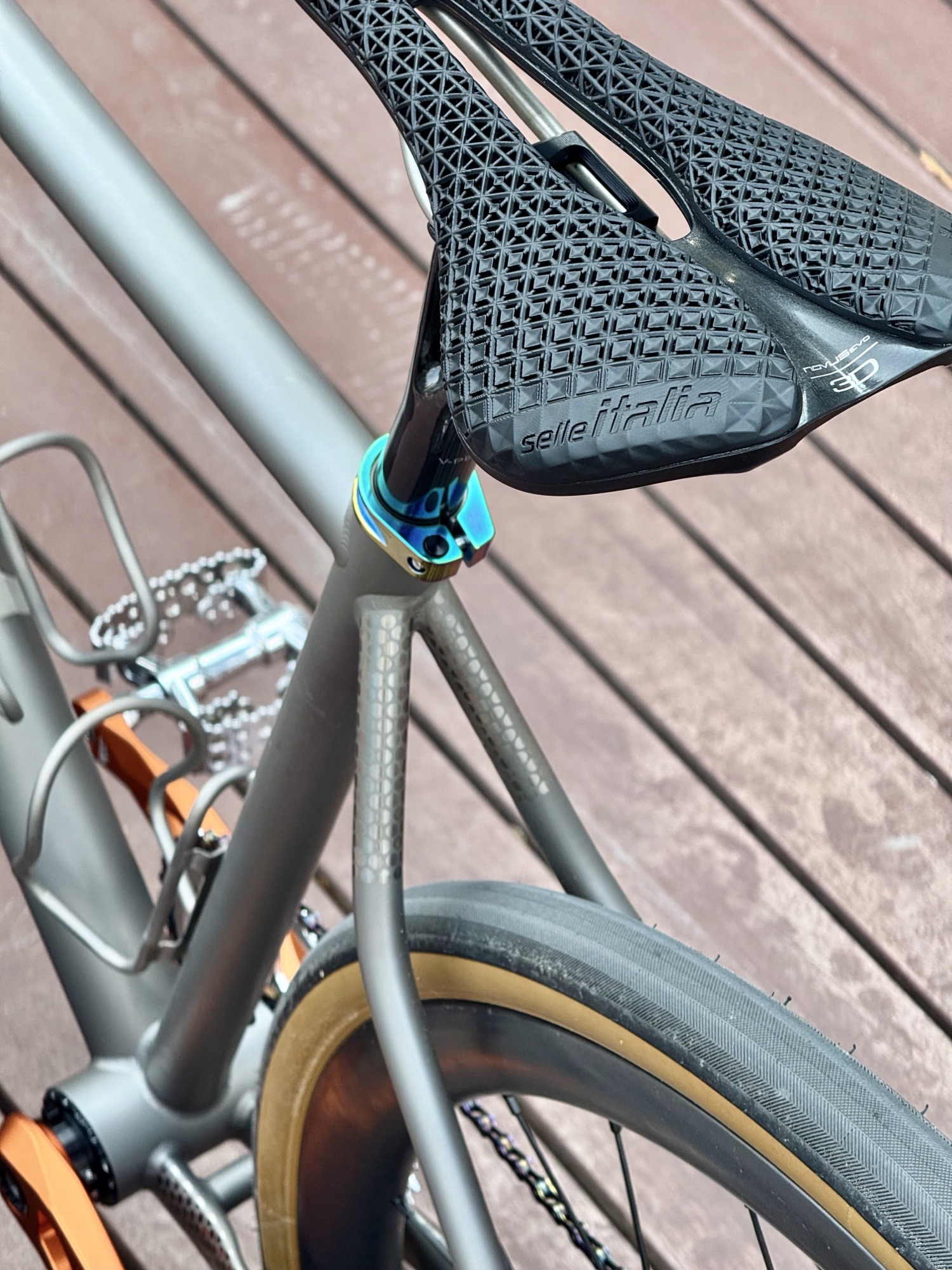

SELLE ITALIA SLR 3D
3D Printed | Lightweight
CYNAID Wheelset
The stealth black wheels on this build are from our own CYNAID lineup — a Gravel wheelset currently in final testing. 40mm rim depth, 24mm internal / 30mm external width, stainless steel spokes, SH freehub. A pair weighs just 1440g. Coming soon.
TECHNICAL SPECIFICATIONS
TYPE
Crossover Gravel
TUBING
GR9 Butted
DRIVETRAIN
LTWOO eGR 1×12
WHEELSET
CYNAID 40mm
HANDLEBAR
PRO DISCOVER
SEATPOST
VFV Suspension
MOUNTING
Triple Cage
TOTAL WEIGHT
9.3kg
